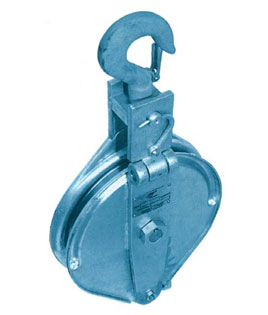

Model No.75 Blocks

This is a general purpose rigging block with snatch facility for easy reeving via a drop down gate mechanism.

It is a lightweight construction and can be supplied with either a swivel oval eye, or hook head fitting with an optional safety catch. Supplied with various SWL from 1.5 to 10T with a range of sheave sizes with phosphor bronze bush.

Standard features

  • Fitted with phoshor bronze bushed sheave
  • Painted finish
  • Grease lubrication through sheave pin and head fitting
  • Certain sizes are available from stock
  • Alternative headfitting, bearings and finish available on request
  • UK manufactured
  • 100% tested and certified

Specifications - Model 75

Sheave Diameter Wire Rope Dia mm S.W.L Tonne
mm inches
152 6 11-10 1.5
152 6 14-16 2
203 8 14-16 2
203 8 20-22 2.5
254 10 20-22 3
305 12 20-22 3
305 12 24-26 5
357 14 24-26 5
357 14 28-30 8
406 16 32-35 10
  • Model No.75 Blocks

All Model No.75 blocks can be made to your exact specifications, please call +44 (0)121 568 3420 for more information.
