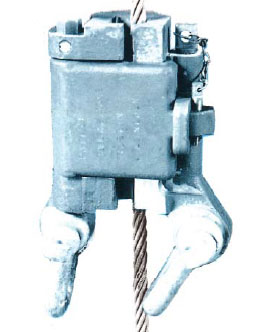

Wire Rope Carpenter Stoppers

This is a portable method of gripping and holding a steel wire rope without causing kinks or damaging the rope.

The rope sits inside a cast wedge manufactured to accomodate the specified wire rope size. As the load is applied to the wire rope the wedge slides deeper into the tapered housing.

The stopper is designed so that it can be opened and closed by one man offering portability, safety, reliability and versatility.

Standard features

  • Proofloaded to 1.5 x SWL
  • Manufactured to suit wire sized from 8mm to 76mm
  • Larger sizes available upon request
  • 100% tested and certified.


Specifications - Carpenter Stopper

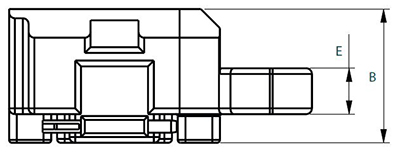

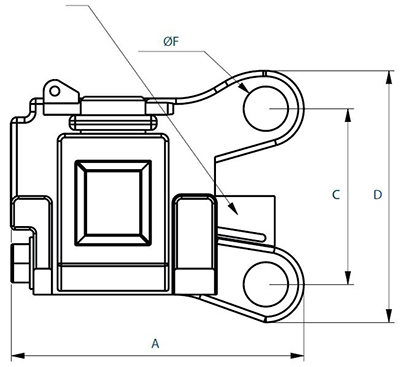

Pattern Steel wire rope dia.(mm) SWL (tonne) A B C D E F Mass (kg)
Pattern 24 14-20 5 158 70 95 136 24 20 6
Pattern 23 22-28 10 218 99 133 191 33 27 16
Pattern 22 30-36 17 280 127 170 244 43 35 34
Pattern 21 38-44 25 342 156 208 298 53 43 63
Pattern 20 48-52 35 405 184 247 355 58 52 103
Pattern 19 54-56 40 436 198 266 382 66 56 129
Pattern 18 60-64 55 498 227 304 437 75 64 193
Pattern 17 72-76 75 592 268 361 518 90 76 324
Pattern 16 78-84 90 610 276 376 540 90 76 960
Pattern 15 86-90 105 630 288 392 572 96 86 395
  • Wire Rope Carpenter Stopper

All Carpenter Stoppers can be made to your exact specifications, please call +44 (0)1274 531862 for more information.
